QSE113, PLASTIC SILICON INFRARED PHOTOTRANSISTOR

PLASTIC SILICON INFRARED PHOTOTRANSISTOR QSE113 PACKAGE DIMENSIONS 0.175 (4.44) 0.087 (2.22) Ø 0.065 (1.65) QSE114 0.050 (1.27) 0.200 (5.08) Ø 0.0.
The QSE113/114 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.

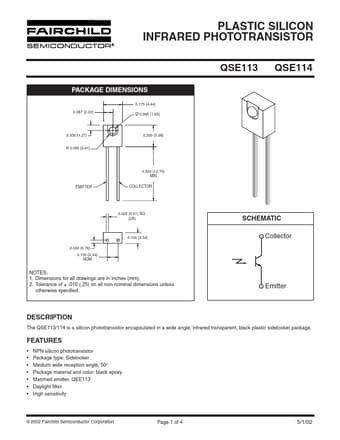

datasheet Preview Page 1 from Datasheet4u.com

QSE113_FairchildSemiconductor.pdf

QSE113 Datasheet Preview — Preview of QSE113 PDF

Datasheet Details

Part number:

QSE113

Manufacturer:

Fairchild Semiconductor

File Size:

320.17 KB

Description:

PLASTIC SILICON INFRARED PHOTOTRANSISTOR

Features

* NPN silicon phototransistor Package type: Sidelooker Medium wide reception angle, 50° Package material and color: black epoxy Matched emitter: QEE113 Daylight ﬁlter High sensitivity © 2002 Fairchild Semiconductor Corporation Pag
