QTLP601C-2 SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height)

SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height) QTLP601C-2 HER QTLP601C-7 AlGaAs Red QTLP601C-3 Yellow QTLP601C-B Blue QTLP601C-4 Green PACKAGE DIMENSIONS 0.071 (1.8) 0.055 (1.4) 0.035 (0.9) 0.028 (0.7) TOP 0.047 (1.2) 0.004 (0.1) 0.024 (0.6) SIDE 0.039 (1.0) POLARITY MARK (See Note 2) BOTTOM - + POLARITY for -2, -3, -4 and -B for -7 APPLICATIONS Keypad backlighting Push-button backlighting LCD backlighting NOTE: 1. Dimensions for all drawings .

QTLP601C-2 Features

* Miniature footprint - 1.6(L) X 0.8(W) X 0.6(H) mm

* Wide viewing angle of 120°

* Water clear optics

* Moisture-proof packaging

* Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 2003 Fairchild Semiconductor Corporatio

QTLP601C-2 Datasheet (362.52 KB)

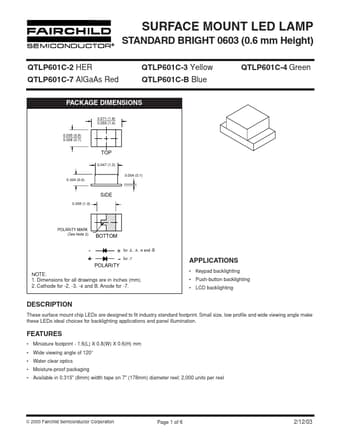

Preview of QTLP601C-2 PDF
QTLP601C-2 Datasheet Preview Page 2 QTLP601C-2 Datasheet Preview Page 3

Datasheet Details

Part number:

QTLP601C-2

Manufacturer:

Fairchild Semiconductor

File Size:

362.52 KB

Description:

Surface mount led lamp standard bright 0603 (0.6 mm height).
