QTLP601C-AG Datasheet, Lamp, Fairchild Semiconductor

QTLP601C-AG Features

• Lamp
• Small footprint - 1.6(L) X 0.8(W) X 0.6(H) mm
• AllnGaP technology for -R, -E, -O, -Y and -AG
• InGaN/SiC technology for -IG and -IB
• Wide viewing ang

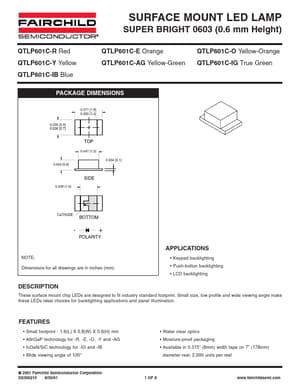

PDF File Details

Part number:

QTLP601C-AG

Manufacturer:

Fairchild Semiconductor

File Size:

137.75kb

Download:

📄 Datasheet

Description:

Surface mount led lamp. These surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide viewing angle make th

QTLP601C-AG Application

• Applications NOTE: Dimensions for all drawings are in inches (mm).
• Keypad backlighting
• Push-button backlighting
• LCD ba
