QTLP601C-B - SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height)

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

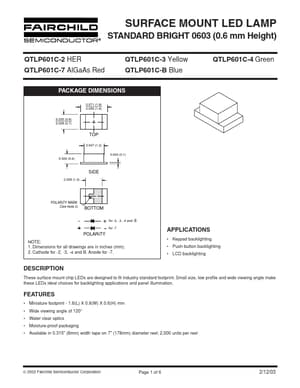

QTLP601C-B SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height) by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – QTLP601C-B

Datasheet Details

Part number	QTLP601C-B
Manufacturer	Fairchild Semiconductor
File Size	362.52 KB
Description	SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height)
Datasheet	QTLP601C-B Datasheet
Additional preview pages of the QTLP601C-B datasheet.

Product details

Description

These surface mount chip LEDs are designed to ﬁt industry standard footprint.

Features

Miniature footprint - 1.6(L) X 0.8(W) X 0.6(H) mm.
Wide viewing angle of 120°.
Water clear optics.
Moisture-proof packaging.
Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 2003 Fairchild Semiconductor Corporation Page 1 of 6 2/12/03.
