QTLP652C-3 - SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 (Reverse Mount)

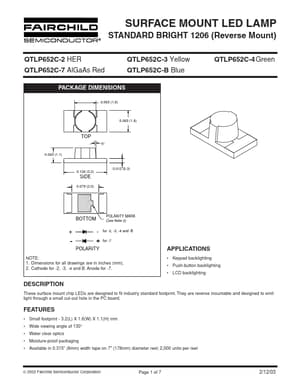

SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 (Reverse Mount) QTLP652C-2 HER QTLP652C-7 AlGaAs Red PACKAGE DIMENSIONS 0.063 (1.6) QTLP652C-3 Yellow QTLP652C-B Blue QTLP652C-4 Green 0.063 (1.6) TOP 5° 0.043 (1.1) 0.126 (3.2) 0.012 (0.3) SIDE 0.079 (2.0) BOTTOM POLARITY MARK (See Note 2) + POLARITY for -2, -3, -4 and -B for -7 APPLICATIONS Keypad backlighting Push-button backlighting LCD backlighting NOTE: 1.
Dimensions for all drawings are in inches (mm).
QTLP652C-3 Features
* Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
* Wide viewing angle of 130°
* Water clear optics
* Moisture-proof packaging
* Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 2003 Fairchild Semiconductor Corporation P
