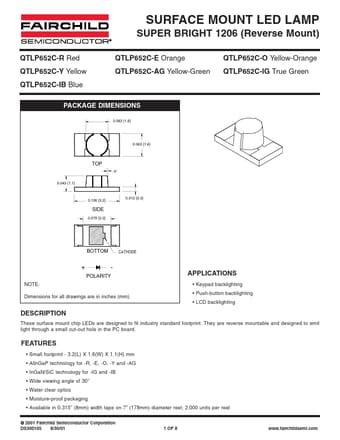

QTLP652C-E Datasheet, Mount), Fairchild Semiconductor

QTLP652C-E Features

• Mount)
• Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
• AllnGaP technology for -R, -E, -O, -Y and -AG
• InGaN/SiC technology for -IG and -IB
• Wide viewing ang

PDF File Details

Part number:

QTLP652C-E

Manufacturer:

Fairchild Semiconductor

File Size:

125.74kb

Download:

📄 Datasheet

Description:

Surface mount led lamp super bright 1206 (reverse mount). These surface mount chip LEDs are designed to fit industry standard footprint. They are reverse mountable and designed to emit light

QTLP652C-E Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting Dimensions for all drawings are in inches
