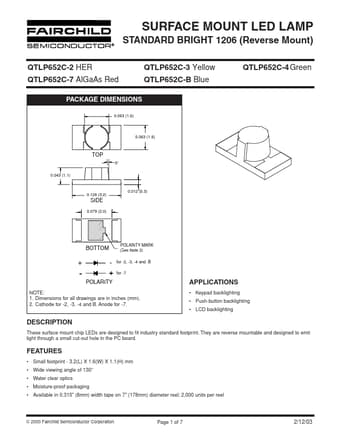

QTLP652C-B Datasheet, Mount), Fairchild Semiconductor

QTLP652C-B Features

• Mount)
• Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
• Wide viewing angle of 130°
• Water clear optics
• Moisture-proof packaging
• Available in 0.315

PDF File Details

Part number:

QTLP652C-B

Manufacturer:

Fairchild Semiconductor

File Size:

403.55kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright 1206 (reverse mount). These surface mount chip LEDs are designed to fit industry standard footprint. They are reverse mountable and designed to emit light t

QTLP652C-B Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: 1. Dimensions for all drawings are i
