QTLP652C-Y SURFACE MOUNT LED LAMP SUPER BRIGHT 1206 (Reverse Mount)

QTLP652C-Y Description

SURFACE MOUNT LED LAMP SUPER BRIGHT 1206 (Reverse Mount) QTLP652C-R Red QTLP652C-Y Yellow QTLP652C-IB Blue PACKAGE DIMENSIONS 0.063 (1.6) QTLP652C-E .
These surface mount chip LEDs are designed to fit industry standard footprint.

QTLP652C-Y Features

* Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
* AllnGaP technology for -R, -E, -O, -Y and -AG
* InGaN/SiC technology for -IG and -IB
* Wide viewing angle of 30°
* Water clear optics
* Moisture-proof packaging
* Available in 0.315” (8mm) width

QTLP652C-Y Applications

* Keypad backlighting
* Push-button backlighting

📥 Download Datasheet

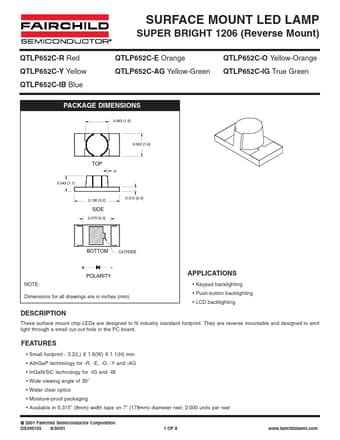

Preview of QTLP652C-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QTLP652C-Y
Manufacturer
Fairchild Semiconductor
File Size
125.74 KB
Datasheet
QTLP652C-Y_FairchildSemiconductor.pdf
Description
SURFACE MOUNT LED LAMP SUPER BRIGHT 1206 (Reverse Mount)
