QTLP670C-2 Datasheet, Plcc-2, Fairchild Semiconductor

QTLP670C-2 Features

• Plcc-2
• GaN/SIC technology for -B and -W
• Wide viewing angle of 120°
• Water clear optics
• Moisture-proof packaging
• Available in 0.315" (8mm) width

PDF File Details

Part number:

QTLP670C-2

Manufacturer:

Fairchild Semiconductor

File Size:

155.23kb

Download:

📄 Datasheet

Description:

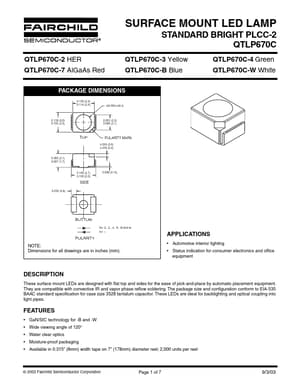

Surface mount led lamp standard bright plcc-2. These surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipment. They ar

QTLP670C-2 Application

• Applications
• Automotive interior lighting
• Status indication for consumer electronics and office equipment NOTE: Dimensions for a
