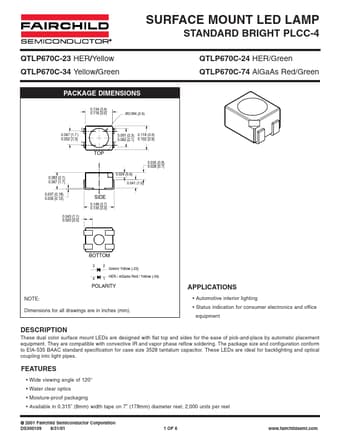

QTLP670C-24 Datasheet, Plcc-4, Fairchild Semiconductor

QTLP670C-24 Features

• Plcc-4
• Wide viewing angle of 120°
• Water clear optics
• Moisture-proof packaging
• Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 un

PDF File Details

Part number:

QTLP670C-24

Manufacturer:

Fairchild Semiconductor

File Size:

159.29kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright plcc-4. These dual color surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipm

QTLP670C-24 Application

• Applications
• Automotive interior lighting
• Status indication for consumer electronics and office equipment NOTE: Dimensions for
