QTLP670C-B Datasheet - Fairchild Semiconductor

QTLP670C-B SURFACE MOUNT LED LAMP

These surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipment. They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration conform to EIA-535 BAAC standard specification for case size 3528 tan.
SURFACE MOUNT LED LAMP STANDARD BRIGHT PLCC-2 QTLP670C QTLP670C-2 HER QTLP670C-7 AlGaAs Red QTLP670C-3 Yellow QTLP670C-B Blue QTLP670C-4 Green QTLP670C-W White PACKAGE DIMENSIONS 0.130 (3.3) 0.114 (2.9) Ø0.094 [Ø2.4] 0.118 (3.0) 0.102 (2.6) 0.091 (2.3) 0.083 (2.1) TOP POLARITY MARK 0.024 (0.6) 0.016 (0.4) 0.083 (2.1) 0.067 (1.7) 0.146 (3.7) 0.130 (3.3) 0.006 (0.15) SIDE 0.032 (0.8) BOTTOM _ _ POLARITY for -2, -3, -4, -9, -B and W for -7 APPLICATIONS Automotive interior li.

QTLP670C-B Features

* GaN/SIC technology for -B and -W

* Wide viewing angle of 120°

* Water clear optics

* Moisture-proof packaging

* Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 2003 Fairchild Semiconductor Corporation Page 1 of 7 9

QTLP670C-B Datasheet (155.23 KB)

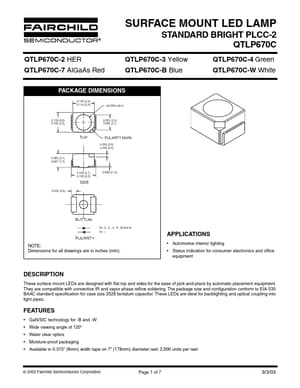

Preview of QTLP670C-B PDF

Datasheet Details

Part number:

QTLP670C-B

Manufacturer:

Fairchild Semiconductor

File Size:

155.23 KB

Description:

Surface mount led lamp.
