QTLP670C-74 SURFACE MOUNT LED LAMP STANDARD BRIGHT PLCC-4

These dual color surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipment. They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration conform to EIA-535 BAAC standard specification for cas.

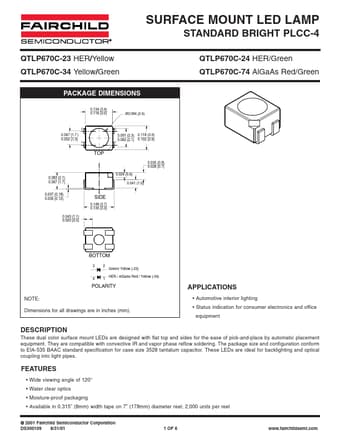

SURFACE MOUNT LED LAMP STANDARD BRIGHT PLCC-4 QTLP670C-23 HER/Yellow QTLP670C-34 Yellow/Green PACKAGE DIMENSIONS 0.134 (3.4) 0.118 (3.0) Ø0.094 (2.4) QTLP670C-24 HER/Green QTLP670C-74 AlGaAs Red/Green 3 2 0.067 (1.7 ) 0.052 (1.3) 4 1 0.091 (2.3) 0.083 (2.1) 0.118 (3.0) 0.102 (2.6) TOP 0.035 (0.9) 0.028 (0.7) 0.024 (0.6) 0.083 (2.1) 0.067 (1.7) 0.041 (1.0) 0.007 (0.18) 0.005 (0.12) SIDE 0.148 (3.7) 0.130 (3.3) 0.043 (1.1) 0.020 (0.5) BOTTOM 3 2 Green/ Yellow (-23) HER / AlGaAs Red / Ye.

QTLP670C-74 Features

* Wide viewing angle of 120°

* Water clear optics

* Moisture-proof packaging

* Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel  2001 Fairchild Semiconductor Corporation DS300109 8/31/01 1 OF 6 www.fairchildsemi.com SURFACE MO
