QTLP670C-7

SURFACE MOUNT LED LAMP

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Everlight Electronics Co Ltd QTLP670C74TR LED GREEN/RED CLEAR 4PLCC SMD DigiKey 0 100000 units
$0.08

QTLP670C-7 Datasheet (155.23 KB)

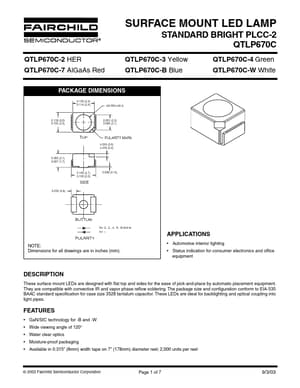

Preview of QTLP670C-7 PDF Datasheet

Datasheet Details

Part number:

QTLP670C-7

Manufacturer:

Fairchild Semiconductor

File Size:

155.23 KB

Description:

Surface mount led lamp

QTLP670C-7 Features

* GaN/SIC technology for -B and -W

* Wide viewing angle of 120°

* Water clear optics

* Moisture-proof packaging

* Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 2003 Fairchild Semiconductor Corporation Page 1 of 7 9

QTLP670C-7 General Description

These surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipment. They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration conform to EIA-535 BAAC standard specification for case size 3528 tan.
