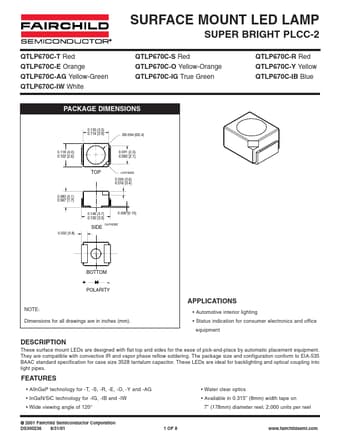

QTLP670C-IG SURFACE MOUNT LED LAMP

These surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement equipment. They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration conform to EIA-535 BAAC standard specification for case size 3528.

SURFACE MOUNT LED LAMP SUPER BRIGHT PLCC-2 QTLP670C-T Red QTLP670C-E Orange QTLP670C-AG Yellow-Green QTLP670C-IW White QTLP670C-S Red QTLP670C-O Yellow-Orange QTLP670C-IG True Green QTLP670C-R Red QTLP670C-Y Yellow QTLP670C-IB Blue PACKAGE DIMENSIONS 0.130 (3.3) 0.114 (2.9) Ø0.094 [Ø2.4] 0.118 (3.0) 0.102 (2.6) 0.091 (2.3) 0.083 (2.1) TOP CATHODE 0.024 (0.6) 0.016 (0.4) 0.083 (2.1) 0.067 (1.7) 0.146 (3.7) 0.130 (3.3) 0.006 (0.15) SIDE 0.032 (0.8) CATHODE BOTTOM POLARITY APPLICATIO.

QTLP670C-IG Features

* AllnGaP technology for -T, -S, -R, -E, -O, -Y and -AG

* InGaN/SiC technology for -IG, -IB and -IW

* Wide viewing angle of 120°  2001 Fairchild Semiconductor Corporation DS300236 8/31/01

* Water clear optics

* Available in 0.315” (8mm) width tape on 7” (178
