RFD14N05SM Datasheet, Mosfet, Fairchild Semiconductor

RFD14N05SM Features

• Mosfet
• 14A, 50V
• rDS(ON) = 0.100Ω
• Temperature Compensating PSPICE ® Model
• Peak Current vs Pulse Width Curve
• UIS Rating Curve
• 175o C O

PDF File Details

Part number:

RFD14N05SM

Manufacturer:

Fairchild Semiconductor

File Size:

157.92kb

Download:

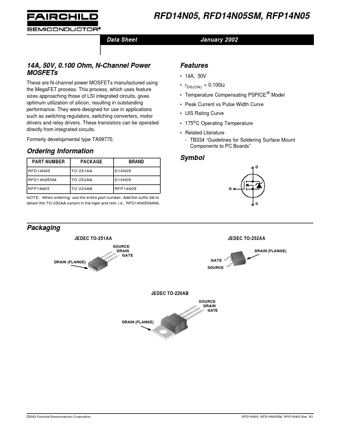

📄 Datasheet

Description:

N-channel power mosfet.

RFD14N05SM Application

• Applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from in
