RFD14N05L 14A/ 50V/ 0.100 Ohm/ Logic Level/ N-Channel Power MOSFETs

Intersil Corporation

Description

RFD14N05L, RFD14N05LSM, RFP14N05L Data Sheet April 1999 File Number 2246.3 14A, 50V, 0.100 Ohm, Logic Level, N-Channel Power MOSFETs These are N-chan.

📥 Download Datasheet

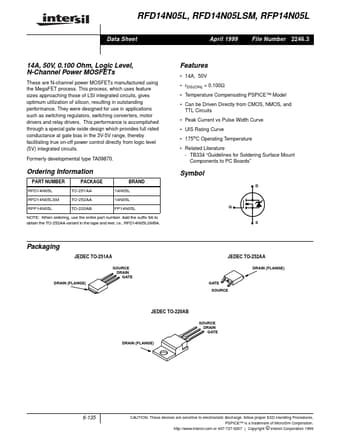

RFD14N05L Datasheet Preview — Preview of RFD14N05L PDF

Datasheet Specifications

Part number: RFD14N05L
Manufacturer: Intersil Corporation
File Size: 74.41 KB
Datasheet: RFD14N05L_IntersilCorporation.pdf
Description: 14A/ 50V/ 0.100 Ohm/ Logic Level/ N-Channel Power MOSFETs

Features

* 14A, 50V
* rDS(ON) = 0.100Ω
* Temperature Compensating PSPICE™ Model
* Can be Driven Directly from CMOS, NMOS, and TTL Circuits
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature

Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. This performance is accomplished through a special gate oxide design which provides full rated conductance at gate bias in the 3V-5V range, thereby facilitating true on-off power control directly from logic level (5
