RMDA29000 Datasheet, Mmic, Fairchild Semiconductor

RMDA29000 Features

  • Mmic
  • 22dB small signal gain (typ.)
  • 23dBm saturated power out (typ.)
  • Circuit contains individual source Vias
  • Chip Size 3.41mm x 1.62mm Device Absolut

PDF File Details

Part number:

RMDA29000

Manufacturer:

Fairchild Semiconductor

File Size:

155.79kb

Download:

📄 Datasheet

Description:

27-31 ghz drive amplifier mmic. The Fairchild Semiconductor RMDA29000 is a high efficiency driver amplifier designed for use in point to point and point to multi-poi

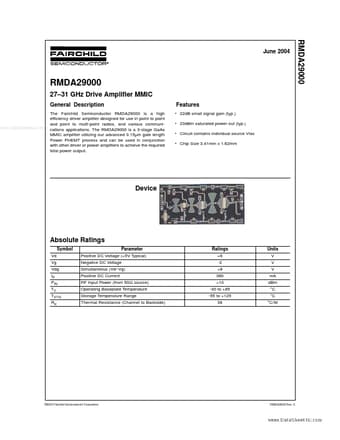

Datasheet Preview: RMDA29000 📥 Download PDF (155.79kb)
Page 2 of RMDA29000 Page 3 of RMDA29000

RMDA29000 Application

  • Applications The RMDA29000 is a 3-stage GaAs MMIC amplifier utilizing our advanced 0.15µm gate length Power PHEMT process and can be used in conjun
