TMC1103 - Triple Video A/D Converter

Product Overview

Fairchild Semiconductor

Part number	TMC1103
Manufacturer	Fairchild Semiconductor
File Size	86.65 KB
Description	Triple Video A/D Converter
Datasheet	TMC1103 Datasheet

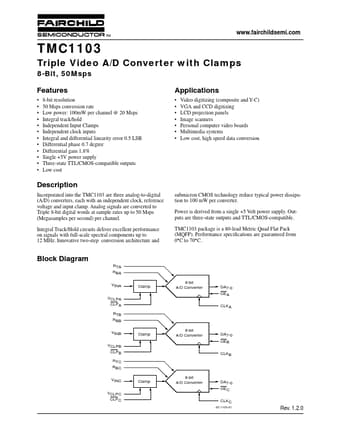

Additional preview pages of the TMC1103 datasheet.

Incorporated into the TMC1103 are three analog-to-digital (A/D) converters, each with an independent clock, reference voltage and input clamp.

8-bit resolution 50 Msps conversion rate Low power: 100mW per channel @ 20 Msps Integral track/hold Independent Input Clamps Independent clock inputs Integral and differential linearity error 0.5 LSB Differential phase 0.7 degree Differential gain 1.8% Single +5V power supply Three-state TTL/CMOS-compatible outputs Low cost.
