TMC1203 - Triple Video A/D Converter

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

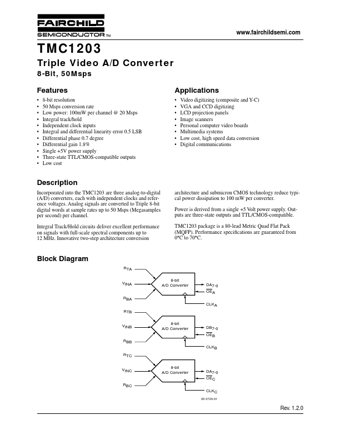

TMC1203 Triple Video A/D Converter by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – TMC1203

Datasheet Details

Part number	TMC1203
Manufacturer	Fairchild Semiconductor
File Size	88.75 KB
Description	Triple Video A/D Converter
Datasheet	TMC1203 Datasheet
Additional preview pages of the TMC1203 datasheet.

Product details

Description

Incorporated into the TMC1203 are three analog-to-digital (A/D) converters, each with independent clocks and reference voltages.

Features

8-bit resolution 50 Msps conversion rate Low power: 100mW per channel @ 20 Msps Integral track/hold Independent clock inputs Integral and differential linearity error 0.5 LSB Differential phase 0.7 degree Differential gain 1.8% Single +5V power supply Three-state TTL/CMOS-compatible outputs Low cost.
