TMC2111A - Variable-Length Shift Register

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

TMC2111A Variable-Length Shift Register by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – TMC2111A

Datasheet Details

Part number	TMC2111A
Manufacturer	Fairchild Semiconductor
File Size	69.95 KB
Description	Variable-Length Shift Register
Datasheet	TMC2111A Datasheet
Note	This datasheet PDF includes multiple part numbers: TMC2111A, TMC2011A. Please refer to the document for exact specifications by model.

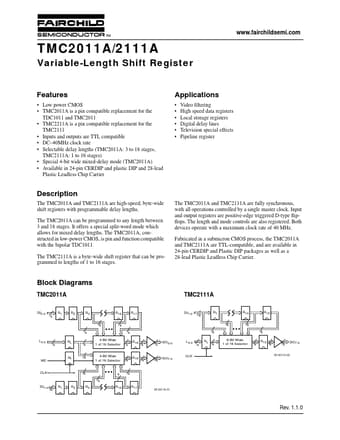

Additional preview pages of the TMC2111A datasheet.

Product details

Description

The TMC2011A and TMC2111A are high-speed, byte-wide shift registers with programmable delay lengths.

Features

Low power CMOS.
TMC2011A is a pin compatible replacement for the TDC1011 and TMC2011.
TMC2211A is a pin compatible replacement for the TMC2111.
Inputs and outputs are TTL compatible.
DC.
40MHz clock rate.
Selectable delay lengths (TMC2011A: 3 to 18 stages, TMC2111A: 1 to 16 stages).
Special 4-bit wide mixed-delay mode (TMC2011A).
Available in 24-pin CERDIP and plastic DIP and 28-lead Plastic Leadless Chip Carrier Ap.
