KA3100D

Stepping Motor Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Fairchild Semiconductor Corporation KA3100D IC,MOTOR CONTROLLER,BIPOLAR,SOP,16PIN Quest Components 14 6 units
$0.9

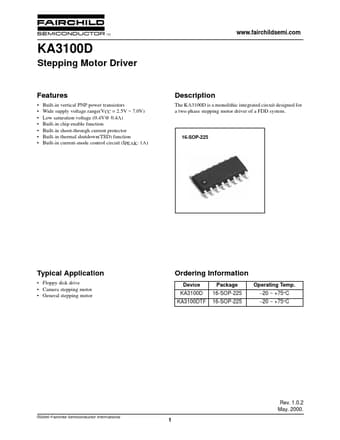

KA3100D Datasheet (163.24 KB)

Preview of KA3100D PDF

Datasheet Details

Part number:

KA3100D

Manufacturer:

Fairchild

File Size:

163.24 KB

Description:

Stepping motor driver.

KA3100D Features

* Built-in vertical PNP power transistors Wide supply voltage range(VCC = 2.5V ~ 7.0V) Low saturation voltage (0.4V@ 0.4A) Built-in chip enable function Built-in shoot-through current protector Built-in thermal shutdown(TSD) functio

KA3100D General Description

The KA3100D is a monolithic integrated circuit designed for a two-phase stepping motor driver of a FDD system. 16-SOP-225 Typical Application

* Floppy disk drive

* Camera stepping motor

* General stepping motor Ordering Information Device KA3100D KA3100DTF Package 16-SOP-2.
