KA317 3-Terminal Positive Adjustable Regulator

KA317 Description

KA317 / LM317 * 3-Terminal Positive Adjustable Regulator KA317 / LM317 3-Terminal Positive Adjustable Regulator September 2014 .
This monolithic integrated circuit is an adjustable 3-terminal positive-voltage regulator designed to supply more than 1.

KA317 Features

* Output-Current In Excess of 1.5 A
* Output-Adjustable Between 1.2 V and 37 V
* Internal Thermal Overload Protection
* Internal Short-Circuit Current Limiting
* Output-Transistor Safe Operating Area Compensation

KA317 Applications

* © 2002 Fairchild Semiconductor Corporation KA317 / LM317 Rev. 1.2.2 5 www. fairchildsemi. com KA317 / LM317
* 3-Terminal Positive Adjustable Regulator Physical Dimensions Figure 8. TO-220, MOLDED, 3LEAD, JEDEC VARIATION AB © 2002 Fairchild Semiconductor Corporation KA317 / LM317 Rev. 1

📥 Download Datasheet

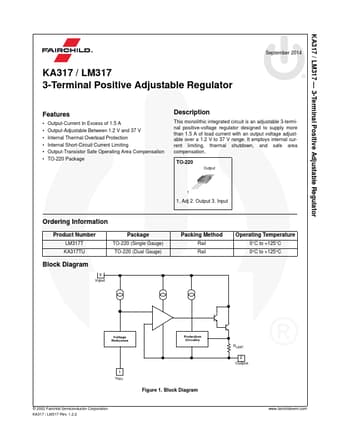

Preview of KA317 PDF
