KA7812, KA7 3-Terminal 1A Positive Voltage Regulator

KA7812 Description

www.fairchildsemi.com KA78XX/KA78XXA 3-Terminal 1A Positive Voltage Regulator .
The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, makin.

KA7812 Features

* Output Current up to 1A
* Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V
* Thermal Overload Protection
* Short Circuit Protection

KA7812 Applications

* Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KA7812, KA7. Please refer to the document for exact specifications by model.

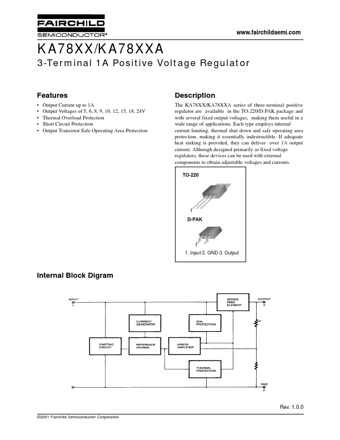

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KA7812, KA7
Manufacturer
Fairchild
File Size
227.11 KB
Datasheet
KA7-805.pdf
Description
3-Terminal 1A Positive Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: KA7812, KA7.
Please refer to the document for exact specifications by model.
