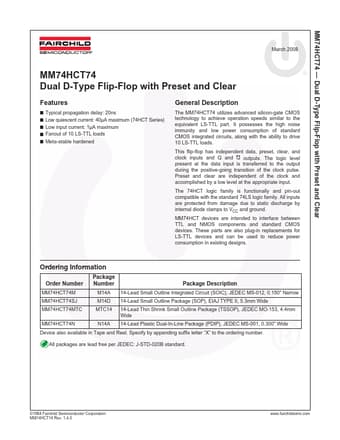

MM74HCT74 Datasheet, Flip-flop, Fairchild

MM74HCT74 Features

• Flip-flop
• Typical propagation delay: 20ns
• Low quiescent current: 40µA maximum (74HCT Series)
• Low input current: 1µA maximum
• Fanout of 10 LS-TTL loads

PDF File Details

Part number:

MM74HCT74

Manufacturer:

Fairchild

File Size:

312.56kb

Download:

📄 Datasheet

Description:

Dual d-type flip-flop. The MM74HCT74 utilizes advanced silicon-gate CMOS technology to achieve operation speeds similar to the equivalent LS-TTL part. It po
