MMBT200 - PNP General Purpose Amplifier

Fairchild

MMBT200 Description

PN200 / MMBT200 / PN200A / MMBT200A Discrete POWER & Signal Technologies PN200 PN200A MMBT200 MMBT200A C E C B TO-92 E SOT-23 Mark: N2 / N2A B .

MMBT200 Applications

* at collector currents to 300 mA. Sourced from Process 68. Absolute Maximum Ratings
* Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Collector-Emitter Voltage Value 45 75 6.0 500 -55 to +15

📥 Download Datasheet

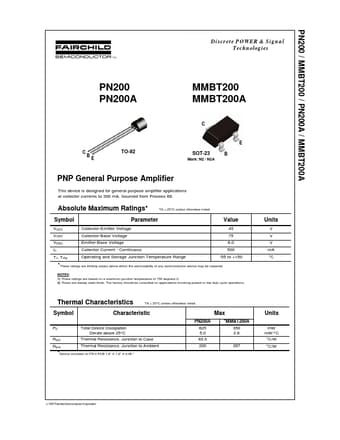

MMBT200 Datasheet Preview — Preview of MMBT200 PDF

Datasheet Details

Part number: MMBT200
Manufacturer: Fairchild
File Size: 51.07 KB
Datasheet: MMBT200_FairchildSemiconductor.pdf
Description: PNP General Purpose Amplifier
