MMBT2222
MMBT2222
www.datasheet4u.com

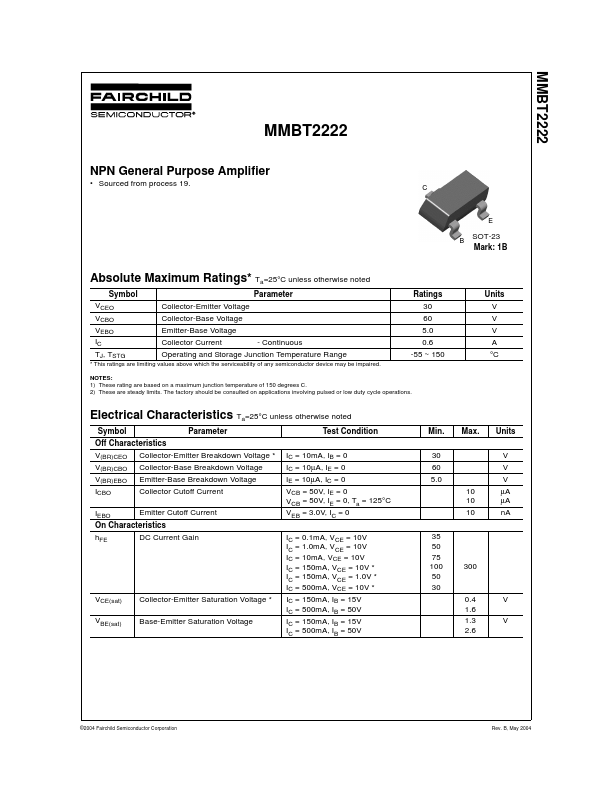

NPN General Purpose Amplifier
• Sourced from process 19.
C
E B
SOT-23 Mark: 1B
Absolute Maximum Ratings* Ta=25°C unless otherwise noted
Symbol VCEO VCBO VEBO IC TJ, TSTG Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Operating and Storage Junction Temperature Range Ratings 30 60 5.0 0.6 -55 ~ 150 Units V V V A °C
* This ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These rating are based on a maximum junction temperature of 150 degrees C. 2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

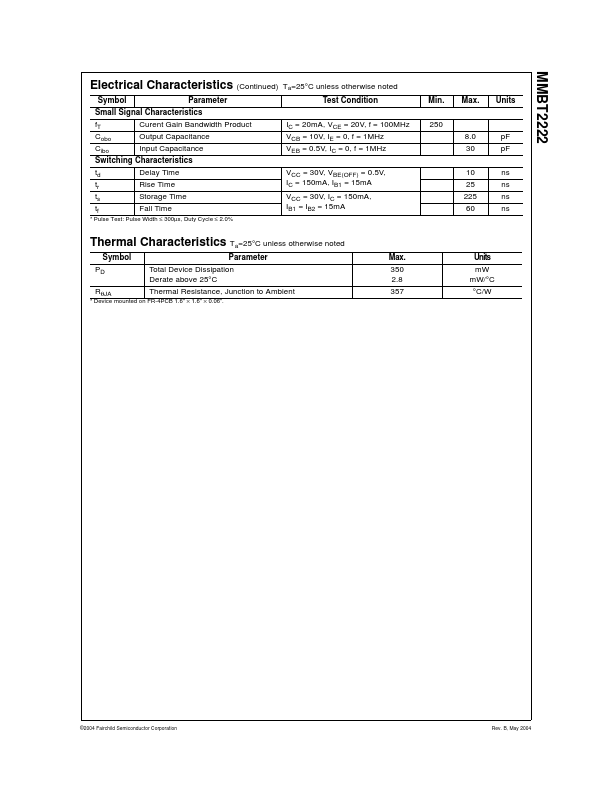

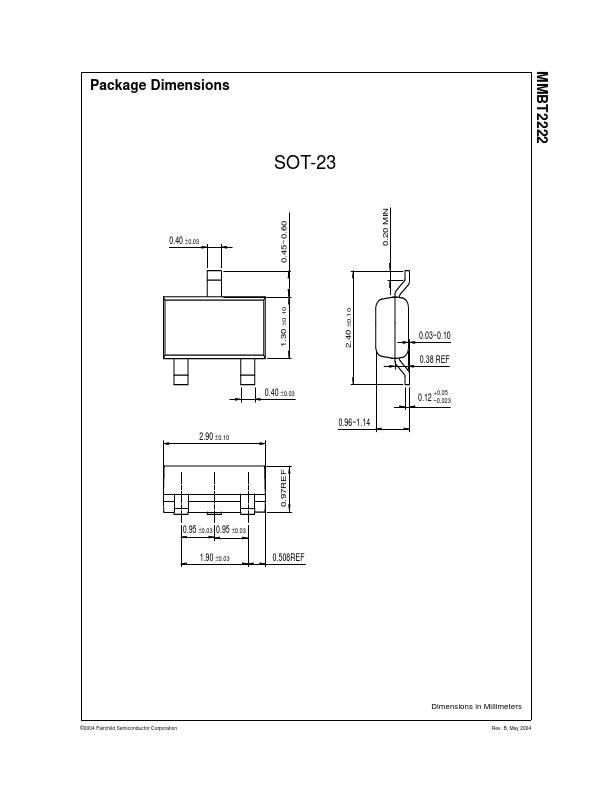

MMBT2222 Datasheet
