MMBT2222AT Datasheet | Kexin Semiconductor

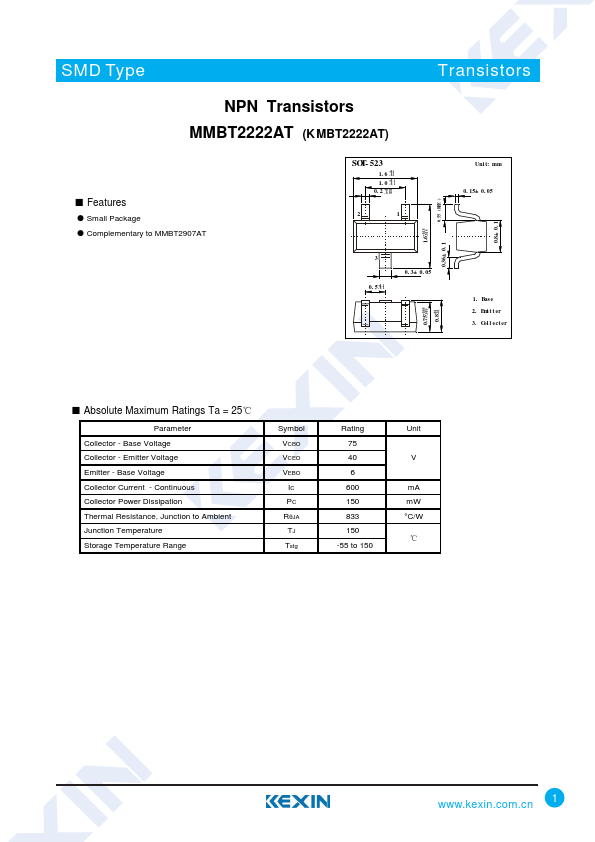

Features - Small Package - plementary to MMBT2907AT SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 +0.15 1.6 -0.15 3 0.5 +0.1 -0.1 0.3±0.05 +0.05 0.75 -0.05 +0.1 0.8 -0.1 0.55 (REF.) 0.36±0.1 U nit: m m 0.15±0.05 1. Base 2. Emitter 3. Collecter 0.8±0.1 - Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Thermal Resistance, Junction to Ambient Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg Rating 75 40 6 600 150 833 150 -55 to 150 Unit V m A m W °C/W ℃ .kexin..cn 1 SMD Type Transistors NPN Transistors MMBT2222AT (KMBT2222AT) - Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Collector cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage DC current...
