MMBT2222AT - NPN SWITCHING TRANSISTOR

Key Features

  • z Epitaxial planar die construction. z Complementary PNP type available (MMBT2907AT). z Collector Current Capability Ic=600mA. z Ultra-small surface mount package. Pb Lead-free MMBT2222AT.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT2222AT NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR Diodes Incorporated
MMBT2222AT NPN Epitaxial Silicon Transistor Fairchild Semiconductor
MMBT2222AT Silicon NPN transistor BLUE ROCKET ELECTRONICS
MMBT2222AT Plastic-Encapsulate Transistors Weitron Technology
MMBT2222AT NPN General Purpose Amplifier Micro Commercial Components

Other Datasheets by Galaxy Microelectronics

Part Number Description
MMBT2222A NPN Amplifier
MMBT2222 NPN General Purpose Amplifier
MMBT2369 NPN General Purpose Amplifier
MMBT2369A NPN General Purpose Amplifier
MMBT2907 PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

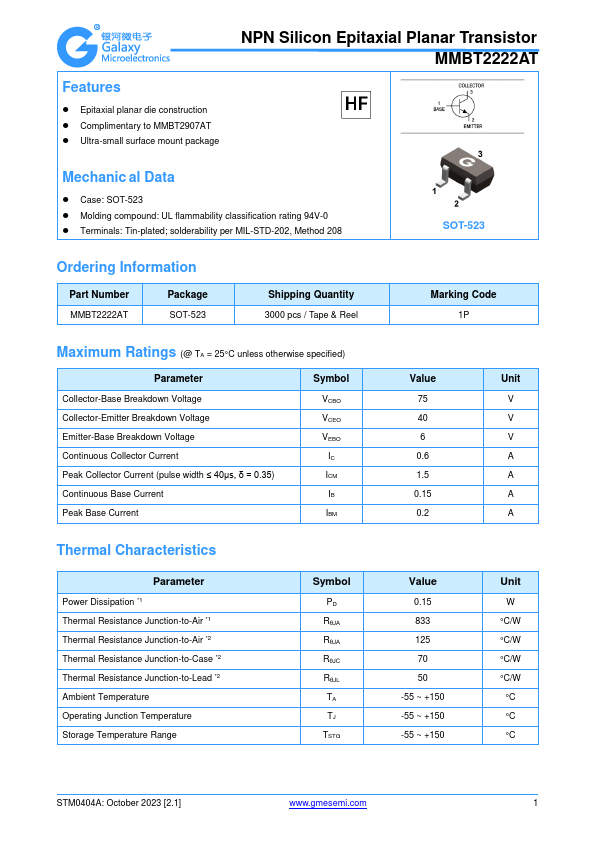

Production specification NPN SWITCHING TRANSISTOR FEATURES z Epitaxial planar die construction. z Complementary PNP type available (MMBT2907AT). z Collector Current Capability Ic=600mA. z Ultra-small surface mount package. Pb Lead-free MMBT2222AT APPLICATIONS z General switching and amplification. ORDERING INFORMATION Type No. Marking MMBT2222AT 1P SOT-523 Package Code SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER MMBT3904T VCBO collector-base voltage 75 VCEO collector-emitter voltage 40 VEBO emitter-base voltage 6 IC collector current (DC) 600 Pd Power dissipation 150 RθJA Thermal resistance, junction to Ambient 833 Tstg storage temperature range -55 to +150 Tj junction temperature 150 UNIT V V V mA mW °C/W °C °C H020 Rev.
