MMBT200A - PNP General Purpose Amplifier

📥 Download Datasheet

Datasheet preview – MMBT200A

Datasheet Details

Part number MMBT200A
Manufacturer Fairchild
File Size 51.07 KB
Description PNP General Purpose Amplifier
Datasheet download datasheet MMBT200A Datasheet
Additional preview pages of the MMBT200A datasheet.

📁 Similar Datasheet

  • MMBT2131T1 - PNP Transistors (ON Semiconductor)
  • MMBT2131T1G - PNP Transistors (ON Semiconductor)
  • MMBT2131T3 - General Purpose Transistors (ON)
  • MMBT2132T1 - General Purpose Transistors (ON)
  • MMBT2132T1 - (MMBT2132T1 / MMBT2132T3) General Purpose Transistors (Motorola)
  • MMBT2132T3 - General Purpose Transistors (ON)
  • MMBT2132T3 - (MMBT2132T1 / MMBT2132T3) General Purpose Transistors (Motorola)
  • MMBT2222 - NPN EPITAXIAL SILICON TRANSISTOR (MIC)
  • MMBT2222 - GENERAL PURPOSE NPN TRANSISTORS (TIPTEK)
  • MMBT2222 - NPN TRANSISTOR (Samsung)
Other Datasheets by Fairchild

Full PDF Text Transcription

Click to expand full text

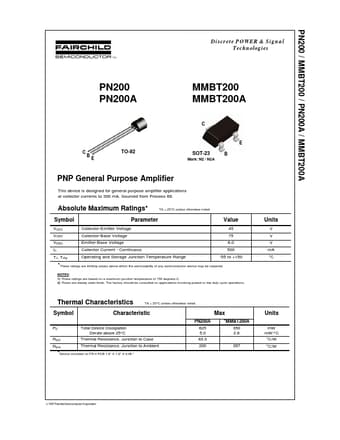

PN200 / MMBT200 / PN200A / MMBT200A Discrete POWER & Signal Technologies PN200 PN200A MMBT200 MMBT200A C E C B TO-92 E SOT-23 Mark: N2 / N2A B PNP General Purpose Amplifier This device is designed for general purpose amplifier applications at collector currents to 300 mA. Sourced from Process 68. Absolute Maximum Ratings* Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Collector-Emitter Voltage Value 45 75 6.0 500 -55 to +150 Units V V V mA °C Operating and Storage Junction Temperature Range *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
