NC7SZ10 Datasheet - Fairchild

NC7SZ10, TinyLogic UHS 3-Input NAND Gate

NC7SZ10 TinyLogic UHS 3-Input NAND Gate August 2001 Revised June 2003 NC7SZ10 TinyLogic UHS 3-Input NAND Gate General .
The NC7SZ10 is a single 3-Input NAND Gate from Fairchild’s Ultra High Speed Series of TinyLogic.

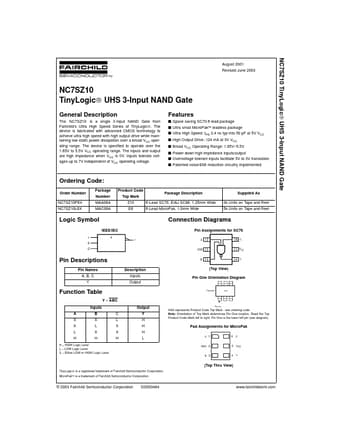

datasheet Preview Page 1 from Datasheet4u.com

NC7SZ10_FairchildSemiconductor.pdf

NC7SZ10 Datasheet Preview — Preview of NC7SZ10 PDF

Datasheet Details

Part number:

NC7SZ10

Manufacturer:

Fairchild

File Size:

100.75 KB

Description:

TinyLogic UHS 3-Input NAND Gate

Features

* s Space saving SC70 6-lead package s Ultra small MicroPak leadless package s Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC s High Output Drive; ±24 mA at 3V VCC s Broad VCC Operating Range; 1.65V
* 5.5V s Power down high impedance inputs/output s Overvoltage tolerant inputs facilitate
