NC7SZ11 - TinyLogic UHS 3-Input AND Gate

Datasheet Summary

Description

The NC7SZ11 is a single 3-input AND Gate from Fairchild’s Ultra High Speed Series of TinyLogic.

The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range.

Features

s Space saving SC70 6-lead package s Ultra small MicroPak leadless package s Ultra High Speed; tPD 2.7 ns Typ into 50 pF at 5V VCC s High Output Drive; ±24 mA at 3V VCC s Broad VCC Operating Range; 1.65V to 5.5V s Power down high impedance inputs/output s Overvoltage tolerant inputs facilitate 5V to 3V translation s Patented noise/EMI reduction circuitry implemented Ordering Code: Order Number NC7SZ11P6X NC7SZ11L6X Package Number MAA06A MAC06A Product Code Top Mark Z11 E7 Package.

Datasheet Details

Part number	NC7SZ11
Manufacturer	Fairchild
File Size	99.54 KB
Description	TinyLogic UHS 3-Input AND Gate
Datasheet	NC7SZ11 Datasheet

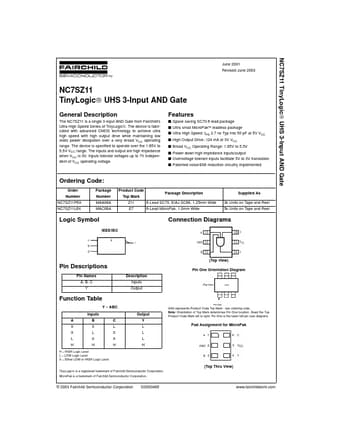

Additional preview pages of the NC7SZ11 datasheet.

📁 Similar Datasheet

NC7SZ11 - TinyLogic UHS Three-Input AND Gate (ON Semiconductor)

NC7SZ10 - TinyLogic UHS 3-Input NAND Gate (ON Semiconductor)

NC7SZ125 - TinyLogic UHS Buffer (ON Semiconductor)

NC7SZ126 - TinyLogic UHS Buffer (ON Semiconductor)

NC7SZ14 - TinyLogic UHS Inverter (ON Semiconductor)

NC7SZ157 - TinyLogic UHS 2-Input Non-Inverting Multiplexer (ON Semiconductor)

NC7SZ175 - TinyLogic UHS D-Type Flip-Flop (ON Semiconductor)

NC7SZ18 - TinyLogic UHS 1-of-2 Non-Inverting De-multiplexer (ON Semiconductor)

NC7SZ19 - TinyLogic UHS 1-of-2 Decoder/Demultiplexer (ON Semiconductor)

NC7SZ00 - UHS Two-Input NAND Gate (ON Semiconductor)

Full PDF Text Transcription

Click to expand full text

NC7SZ11 TinyLogic UHS 3-Input AND Gate June 2001 Revised June 2003 NC7SZ11 TinyLogic UHS 3-Input AND Gate General Description The NC7SZ11 is a single 3-input AND Gate from Fairchild’s Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. Features s Space saving SC70 6-lead package s Ultra small MicroPak leadless package s Ultra High Speed; tPD 2.
