NM95MS16 - Plug and Play Front-End Devices

Product Overview

Fairchild

Part number	NM95MS16
Manufacturer	Fairchild
File Size	138.41 KB
Description	Plug and Play Front-End Devices
Datasheet	NM95MS16 Datasheet

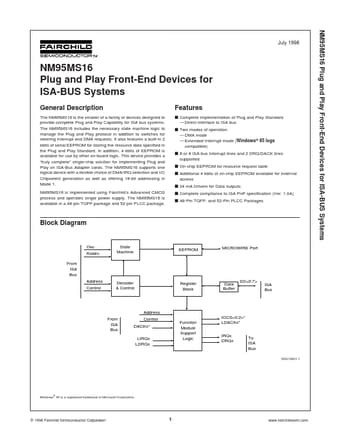

Additional preview pages of the NM95MS16 datasheet.

The NM95MS16 is the smaller of a family of devices designed to provide complete Plug and Play Capability for ISA bus systems.

a built-in 2 kbits of serial EEPROM for storing the resource data specified in the Plug and Play Standard. In addition, 4 kbits of EEPROM is available for use by other on-board logic. This device provides a “truly complete” single-chip solution for implementing Plug and Play on ISA-Bus Adapter cards. The NM95MS16 supports one logical device with a flexible choice of DMA/IRQ selection and I/O Chipselect generation as well as offering 16-bit addressing in Mode 1. NM95MS16 is implemented using Fair.
