FP7103

3A Buck Constant Current Switching Regulator

Feeling Technology

FP7103 Features

* include user accessible EN pin for enabling, thermal shutdown, cycle-by-cycle current limit and over current protection. Features

* Wide Supply Voltage Operating Range: 3.6 to 28V

* Built-in P-MOSFET for 3A Loading Capability

* Precision Feedback Reference Voltage: 0.25V (2%)

* Low C

FP7103 General Description

The FP7103 is a PWM control buck converter designed to provide a simple, high efficiency solution for driving high power LEDs. With a 0.25V reference voltage feedback control to minimize power dissipation, an external resistor sets the current as needed for driving various types of LEDs. The FP7103 .

FP7103 Datasheet (633.30 KB)

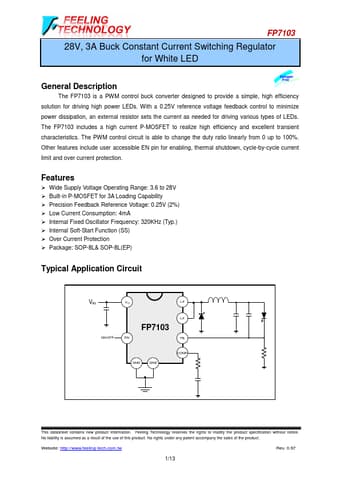

FP7103 Datasheet Preview — Preview of FP7103 PDF

Datasheet Details

Part number:

FP7103

Manufacturer:

Feeling Technology

File Size:

633.30 KB

Description:

3a buck constant current switching regulator.
