FP7126

LED Driver

FP7126 Features

* Fast Average Current Control

* Low-side adjustable current sense

* PWM dimming

* Thermal shutdown

* Short circuit protection

* Under voltage lockout

* Requires Few External Components for Operation Applications

* DC/DC LED driver applications

* LED Street Light

FP7126 General Description

The FP7126 is an average current mode control LED driver IC operating in a constant off-time mode. FP7126 does not produce a peak-to-average error, and therefore greatly improves accuracy, line and load regulation of the LED current without any need for loop compensation or high-side current sensing.

FP7126 Datasheet (861.66 KB)

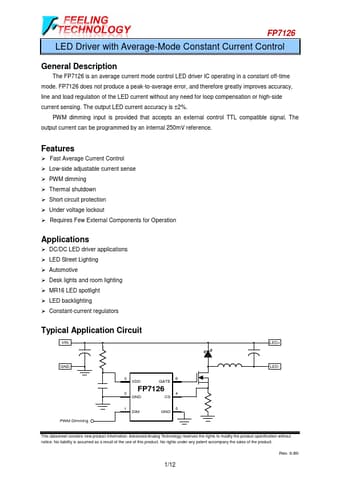

Preview of FP7126 PDF

Datasheet Details

Part number:

FP7126

Manufacturer:

Feeling Technology

File Size:

861.66 KB

Description:

Led driver.
