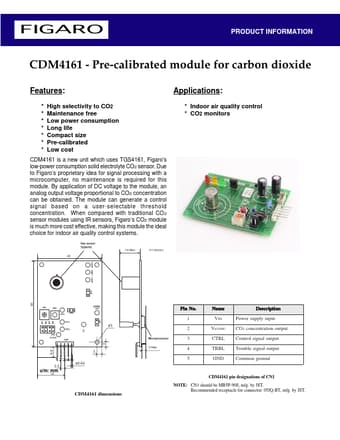

CDM4161 - Pre-calibrated module
Power supply input CO2 concentration output Control signal output Trouble signal output Common ground JP1 JP2 CP2 [+5V] C2 3 6.9 u/m: mm 19 + 2.5 CP3 CP4 2 Microprocessor 3 Max CN1 3 4 5 3 12345 ΓΈ0.64 CDM4161 pin designations of CN1 NOTE: CN1 should be MB5P-90S, mfg.
by JST.
Recommend
CDM4161 Features
* High selectivity to CO2 Maintenance free Low power consumption Long life Compact size Pre-calibrated Low cost Applications:
* Indoor air quality control
* CO2 monitors CDM4161 is a new unit which uses TGS4161, Figaro's low-power consumption solid
