TPW5624 Datasheet (Filtran) - ISDN S-Bus Input/Output Transformer

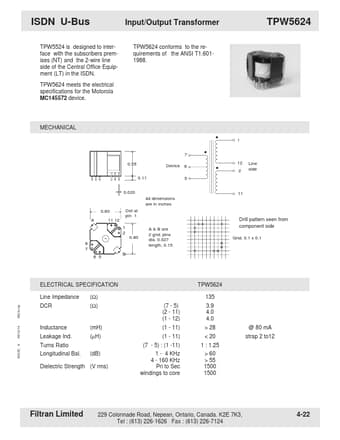

TPW5624, ISDN S-Bus Input/Output Transformer

www.DataSheet4U.com ISDN U-Bus TPW5524 is designed to interface with the subscribers premises (NT) and the 2-wire line side of the Central Office Equipment (LT) in the ISDN.

TPW5624 meets the electrical specifications for the Motorola MC145572 device.

Input/Output Transformer TPW5624 conforms to the requirements of the ANSI T1.6011988.

TPW5624 MECHANICAL 1 7 0.55 0.11 0.020 All dimensions are in inches 0.80 A 11 12 1 2 0.80 8 7 6 5 B A & B are 2 gnd.

pins dia, 0.027 length, 0.15 Dot at pin
