* (1) High-speed switching (2) Small gate charge: QSW = 8.2 nC (typ.) (3) Low drain-source on-resistance: RDS(ON) = 44 mΩ (typ.) (VGS = 10 V) (4) Low leakage current: IDSS = 10 µA (max) (VDS = 250 V) (5) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1.0 mA) 3. Packaging and Internal Circuit
TPW5200FNH Datasheet (371.28 KB)

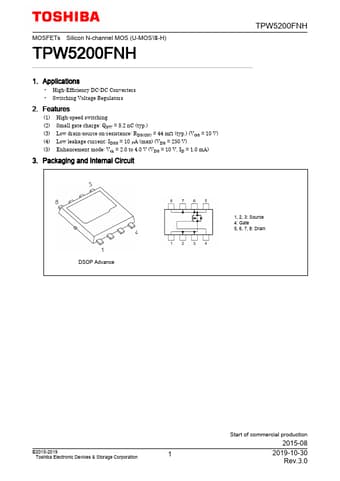

TPW5200FNH
371.28 KB
Silicon n-channel mosfet.
MOSFETs Silicon N-channel MOS (U-MOS-H)
TPW5200FNH
1. Applications
* High-Efficiency DC-DC Converters
* Switching Voltage Regulators
.
