FMA3007 Datasheet, amplifier equivalent, Filtronic Compound Semiconductors

FMA3007 Features

• Amplifier
• Cascode Configuration 10dB Gain pHEMT Technology AGC control with gate bias Input Return Loss <-15dB Output Return Loss <-10

PDF File Details

Part number:

FMA3007

Manufacturer:

Filtronic Compound Semiconductors

File Size:

167.90kb

Download:

📄 Datasheet

Description:

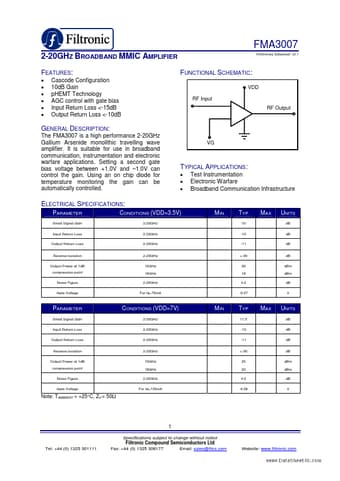

2-20ghz broadband mmic amplifier. The FMA3007 is a high performance 2-20GHz Gallium Arsenide monolithic travelling wave amplifier. It is suitable for use in broadband

FMA3007 Application

• Applications Setting a second gate bias voltage between +1.0V and
    –1.0V can control the gain. Using an on chip diode for temperatur
