FMA3009 Datasheet, Amplifier, Filtronic

FMA3009 Features

• Amplifier
• Cascode Configuration 10dB Gain Single Supply 23dBm P1dB Output Power at 8.0V pHEMT Technology Bias Cont

PDF File Details

Part number:

FMA3009

Manufacturer:

Filtronic

File Size:

113.18kb

Download:

📄 Datasheet

Description:

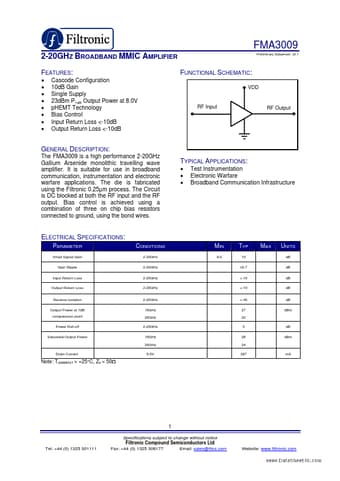

Broadband mmic amplifier. The FMA3009 is a high performance 2-20GHz Gallium Arsenide monolithic travelling wave amplifier. It is suitable for use in broadband

FMA3009 Application

• Applications The die is fabricated using the Filtronic 0.25µm process. The Circuit is DC blocked at both the RF input and the RF output. Bias contr
