FMA3011 Datasheet, Amplifier, Filtronic

FMA3011 Features

• Amplifier

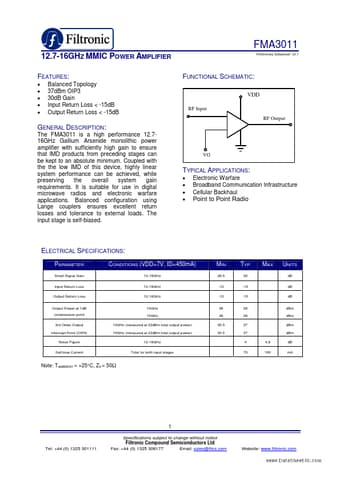

• Balanced Topology 37dBm OIP3 30dB Gain Input Return Loss < -15dB Output Return Loss < -15dB Preliminary Datasheet v2.1 FUNCTIONAL SCH

PDF File Details

Part number:

FMA3011

Manufacturer:

Filtronic

File Size:

306.61kb

Download:

📄 Datasheet

Description:

Mmic power amplifier. The FMA3011 is a high performance 12.716GHz Gallium Arsenide monolithic power amplifier with sufficiently high gain to ensure that I

FMA3011 Application

• Applications Balanced configuration using Lange couplers ensures excellent return losses and tolerance to external loads. The input stage is self-b
