BTA06-600C

Bi-Directional Triode Thyristor

BTA06-600C Features

* Blocking Voltage to 600 V

* On-State Current Rating of 6A RMS at 100℃

* Uniform Gate Trigger Currents in Three Quadrants

* High Immunity to dV/dt-1500V/us minimum at 125℃

* Minimizes Snubber Networks for Protection

* Industry Standard TO-220AB Packag

BTA06-600C General Description

BTA06-600C 2018. 10. 15 Revision No : 0 4/5 Description BTA06-600C 2018. 10. 15 Revision No : 0 5/5 .

BTA06-600C Datasheet (907.24 KB)

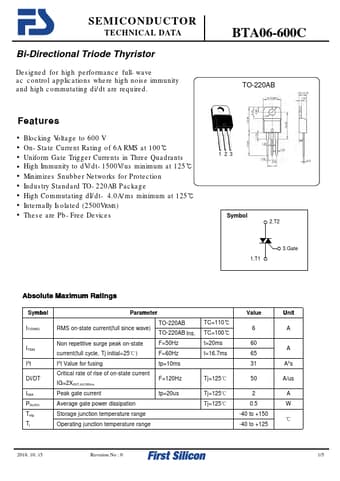

Preview of BTA06-600C PDF

Datasheet Details

Part number:

BTA06-600C

Manufacturer:

First Silicon

File Size:

907.24 KB

Description:

Bi-directional triode thyristor.
SEMICONDUCTOR TECHNICAL DATA Bi-Directional Triode Thyristor Designed for high performance full-wave ac control applications where high noise immunity.
