BTA06-600A - Triacs

Datasheet Summary

Features

With TO-220AB insulated package.
Suitables for general purpose.

Inchange Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	BTA06-600A
Manufacturer	Inchange Semiconductor
File Size	201.15 KB
Description	Triacs
Datasheet	BTA06-600A Datasheet

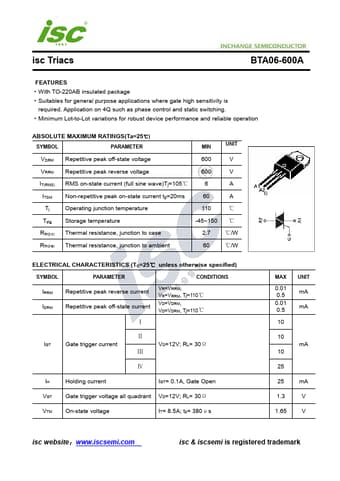

Additional preview pages of the BTA06-600A datasheet.

📁 Similar Datasheet

BTA06-600 - Triac (CDIL)
BTA06-600B - 6A TRIAC (STMicroelectronics)
BTA06-600B - Triacs (HAOPIN)
BTA06-600BW - 6A TRIAC (STMicroelectronics)
BTA06-600BW - Three quadrant triacs (HAOPIN)
BTA06-600C - 6A TRIAC (STMicroelectronics)
BTA06-600C - Bi-Directional Triode Thyristor (First Silicon)
BTA06-600C - Triacs (HAOPIN)
BTA06-600CW - 6A TRIAC (STMicroelectronics)
BTA06-600CW - Three quadrant triacs (HAOPIN)

Other Datasheets by Inchange Semiconductor

BTA06-600C - Triacs
BTA06-600TW - Triacs
BTA06 - Triacs
BTA08-600A - Triacs
BTA08-600C - Triacs
BTA08-600TW - Triacs
BTA10-600B - Triacs
BTA10-600C - Triacs

Full PDF Text Transcription

Click to expand full text

isc Triacs BTA06-600A FEATURES ·With TO-220AB insulated package ·Suitables for general purpose applications where gate high sensitivity is required. Application on 4Q such as phase control and static switching. ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MIN UNIT VDRM Repetitive peak off-state voltage 600 V VRRM Repetitive peak reverse voltage 600 V IT(RMS) RMS on-state current (full sine wave)Tj=105℃ 6 A ITSM Non-repetitive peak on-state current tp=20ms 60 A Tj Operating junction temperature 110 ℃ Tstg Storage temperature -45~150 ℃ Rth(j-c) Thermal resistance, junction to case 2.

Published: Jul 28, 2016 |
