BTA06-600C - 6A TRIAC

This page provides the datasheet information for the BTA06-600C, a member of the BTA06-600B 6A TRIAC family.

Datasheet Summary

Description

Available either in through-hole or surface-mount packages, the BTA06 and BTB06 triac series is suitable for general purpose AC switching.

Features

  • A2 Symbol Value Unit IT(RMS) VDRM/VRRM IGT (Q1) 6 A 600 and 800 V 5 to 50 mA G A1 A2.

📥 Download Datasheet

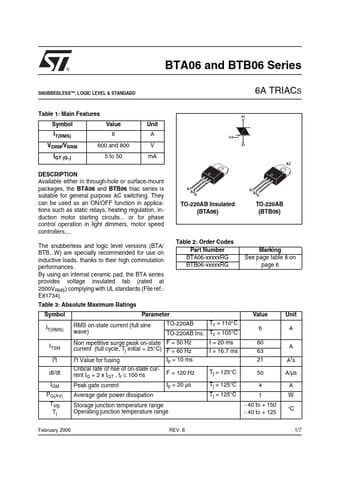

Datasheet preview – BTA06-600C

📁 Similar Datasheet

Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
® BTA06 and BTB06 Series SNUBBERLESS™, LOGIC LEVEL & STANDARD 6A TRIACS Table 1: Main Features A2 Symbol Value Unit IT(RMS) VDRM/VRRM IGT (Q1) 6 A 600 and 800 V 5 to 50 mA G A1 A2 DESCRIPTION Available either in through-hole or surface-mount packages, the BTA06 and BTB06 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers,... A1 A2 G TO-220AB Insulated (BTA06) A1 A2 G TO-220AB (BTB06) The snubberless and logic level versions (BTA/ BTB...W) are specially recommended for use on inductive loads, thanks to their high commutation performances.
