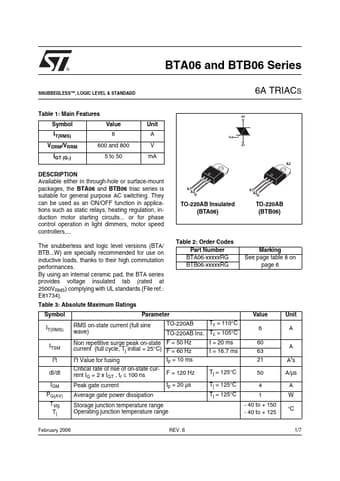

BTA06 and BTB06 Series
SNUBBERLESS™, LOGIC LEVEL & STANDARD
6A TRIACS
Table 1: Main Features A2
Symbol
Value
Unit
IT(RMS) VDRM/VRRM
IGT (Q1)
6
A
600 and 800
V
5 to 50
mA
G A1
A2
DESCRIPTION Available either in through-hole or surface-mount packages, the BTA06 and BTB06 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers,...
A1 A2 G
TO-220AB Insulated (BTA06)
A1 A2 G
TO-220AB (BTB06)
The snubberless and logic level versions (BTA/ BTB...W) are specially recommended for use on inductive loads, thanks to their high commutation performances.
