KBP3005, Bridge Rectifier

SEMICONDUCTOR TECHNICAL DATA KBP3005 ~ KBP310 Bridge Rectifier * .

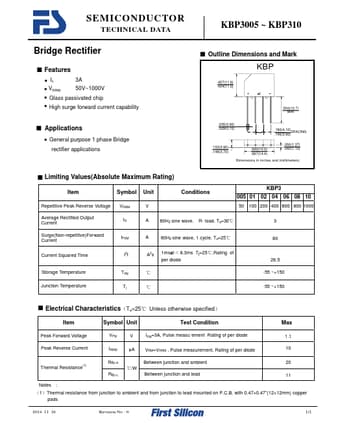

datasheet Preview Page 1 from Datasheet4u.com

KBP3005-FirstSilicon.pdf

KBP3005 Datasheet Preview — Preview of KBP3005 PDF

Datasheet Details

Part number:

KBP3005

Manufacturer:

First Silicon

File Size:

132.39 KB

Description:

Bridge Rectifier

Features

* Io 3A
* VRRM 50V~1000V
* Glass passivated chip
* High surge forward current capability

Applications

* General purpose 1 phase Bridge rectifier applications
* Outline Dimensions and Mark KBP .457(11.6) .434(11.0) + AC - .500(12.7) MIN .035(0.90) .028(0.70) .160(4.10)SPACING .140(3.60) .153(3.90) .146(3.70) .590(15.0) .567(14.4) .050(1.27) .043(1.10) Dimensions in inches and (milli
