KBP303G - Glass Passivated Bridge Rectifiers

Product Overview

Taiwan Semiconductor

Datasheet Details

Part number	KBP303G
Manufacturer	Taiwan Semiconductor
File Size	191.87 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	KBP303G Datasheet
Note	This datasheet PDF includes multiple part numbers: KBP303G, KBP301G. Please refer to the document for exact specifications by model.

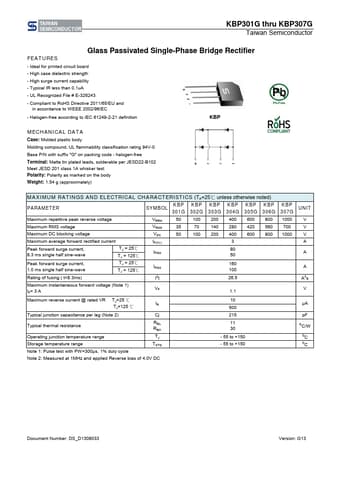

Additional preview pages of the KBP303G datasheet.

Product details

Description

Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD A CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 4 3 2 1 0 0 25 50 75 100 125 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 80 8.3ms Single Half Sine Wave (JEDEC Method) 60 40 20 0 1 10 NUMBER OF CYCLES AT 60 Hz 100 INSTANTANEOUS REVERSE A CURRENT (μA) INSTANTANEOUS FORWARD CURRENT (A) 1000 100 10 1 FIG.3 TYPICAL REVERSE

Features

- Ideal for printed circuit board - High case dielectric strength - High surge current capability - Typical IR less than 0.1uA - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition KBP.
