KBP303 - 3.0A BRIDGE RECTIFIER

Product Overview

Part number	KBP303
Manufacturer	ETC
File Size	88.32 KB
Description	3.0A BRIDGE RECTIFIER
Datasheet	KBP303 Datasheet
Note	This datasheet PDF includes multiple part numbers: KBP303, KBP301. Please refer to the document for exact specifications by model.

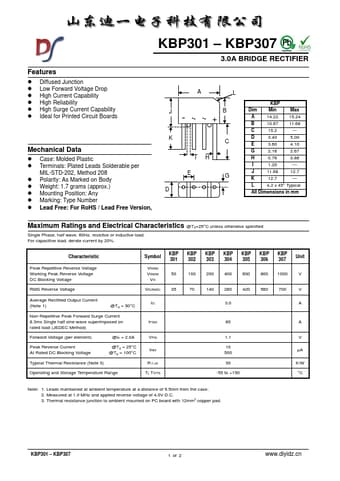

Additional preview pages of the KBP303 datasheet.

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 1.7 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number ! Lead Free: For RoHS / Lead Free Version, AL JB -~~+ KC IH E D G KBP Dim Min Max A 14.22 15.24 B 10.67 11.68 C 15.2.
