FR9884 - 340KHz Synchronous Step-Down DC/DC Converter

FR9884 Description

fitipower integrated technology lnc.FR9884 85T 18V, 3A, 340KHz Synchronous Step-Down DC/DC Converter .
The FR9884 is a synchronous step-down DC/DC converter that provides wide 4.

FR9884 Features

* Wide Input Voltage from 4.5V to 18V
* 3A Output Current
* Adjustable Output Voltage from 0.925V to 14V
* Low Rds(on) Integrated Power MOSFET
* High Efficiency up to 93%
* Fixed 340KHz Switching Frequency
* Current Mode Operation
* Adjustable Soft-Start
* Cycle-b

FR9884 Applications

* Set-Top-Box
* DVD,LCD Display
* OLPC, Netbook
* Distributed Power System
* Datacom, XDSL Pin Assignments SP Package (SOP-8 Exposed Pad) Ordering Information FR9884
* TR: Tape / Reel BS VIN SW GND 1 2 3 4 8 7 6 5 SS EN COMP FB G: Green Package Typ

📥 Download Datasheet

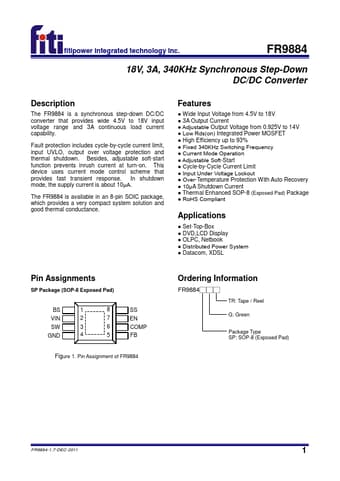

Preview of FR9884 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FR9884
Manufacturer
Fiti
File Size
857.68 KB
Datasheet
FR9884-Fiti.pdf
Description
340KHz Synchronous Step-Down DC/DC Converter
