FR9888 - 340KHz Synchronous Step-Down DC/DC Converter

Datasheet Summary

Description

The FR9888 is a synchronous step-down DC/DC converter that provides wide 4.5V to 23V input voltage range and 3A continuous load current capability.

Fault protection includes cycle-by-cycle current limit, input UVLO, output over voltage protection and thermal shutdown.

Features

Wide Input Voltage from 4.5V to 23V.
3A Output Current.
Adjustable Output Voltage from 0.925V to 14V.
Low Rds(on) integrated Power MOSFET.
High Efficiency Up to 93%.
Fixed 340KHz Switching Frequency.
Current Mode Operation.
Adjustable Soft-Start.
Cycle-by-Cycle current limit.
Input Under Voltage Lockout.
Over-Temperature Protection With Auto Recovery.
1uA Shutdown Current.
Internal Compensation Function.
SOP-8 and Thermal En.

Datasheet Details

Part number	FR9888
Manufacturer	Fiti
File Size	1.16 MB
Description	340KHz Synchronous Step-Down DC/DC Converter
Datasheet	FR9888 Datasheet

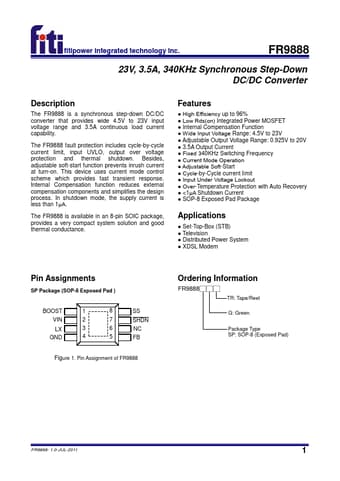

Additional preview pages of the FR9888 datasheet.

📁 Similar Datasheet

FR9886 - 340KHz Synchronous Step-Down DC/DC Converter (fitipower integrated technology)

FR900R12IP4D - PrimePACK3+ module (Infineon)

FR9014 - P-Channel MOSFET (VBsemi)

FR9024 - IRFR9024 (International Rectifier)

FR9024N - IRFR9024N (International Rectifier)

FR9220 - Power MOSFET (VBsemi)

FR9310 - P-Channel Power MOSFET (VBsemi)

Full PDF Text Transcription

Click to expand full text

fitipower integrated technology lnc. FR9888 23V, 3A, 340KHz Synchronous Step-Down DC/DC Converter Description The FR9888 is a synchronous step-down DC/DC converter that provides wide 4.5V to 23V input voltage range and 3A continuous load current capability. Fault protection includes cycle-by-cycle current limit, input UVLO, output over voltage protection and thermal shutdown. Besides, adjustable soft-start function prevents inrush current at turn-on. This device uses current mode control scheme that provides fast transient response. In shutdown mode, the supply current is about 1uA. The FR9888 is available in an 8-pin SOIC package, provides a very compact system solution and good thermal conductance. Features ● Wide Input Voltage from 4.
