FR9885

Synchronous Step-Down DC/DC Converter

FR9885 Features

* Low Rds(on) Integrated Power MOSFET (170mΩ/135mΩ) Internal Compensation Function Wide Input Voltage Range: 4.5V to 18V Adjustable Output Voltage Down to 0.6V 2A Peak Output Current 500kHz Switching Frequency Internal 0.8ms Soft-Start Cycle-by-Cycle Current Limit Hiccup Short Circuit Protection Over-

FR9885 General Description

The FR9885 is a synchronous step-down DC/DC converter that provides wide 4.5V to 18V input voltage range and 2A peak load current capability. At light load condition, the FR9885 can operate at PSM mode to support high efficiency and reduce power loss. The FR9885 fault protection includes cycle-by-c.

FR9885 Datasheet (439.04 KB)

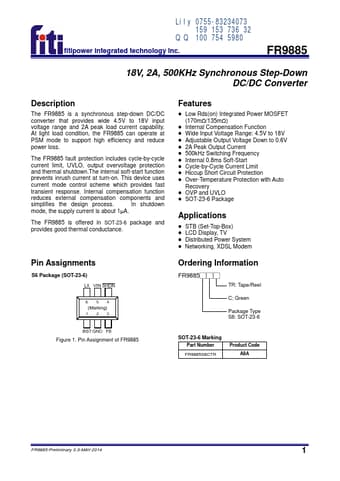

Preview of FR9885 PDF

Datasheet Details

Part number:

FR9885

Manufacturer:

Fiti

File Size:

439.04 KB

Description:

Synchronous step-down dc/dc converter.
Lily 0755-83234073 159 153 736 32 Q Q 100 754 5980 fitipower integrated technology lnc. FR9885 18V, 2A, 500KHz Synchronous Step-Down DC/DC Converter.
